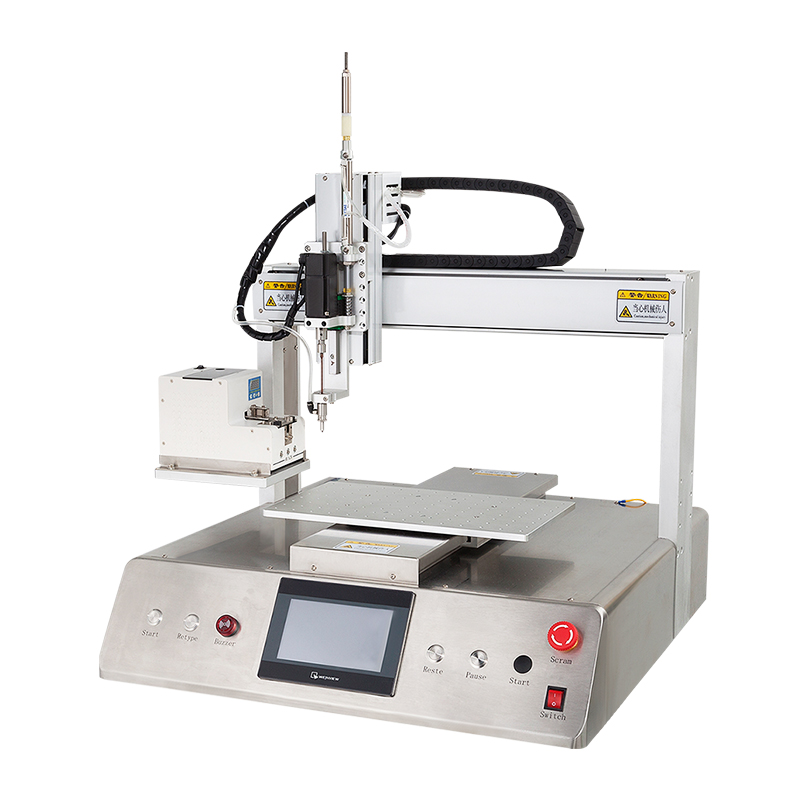

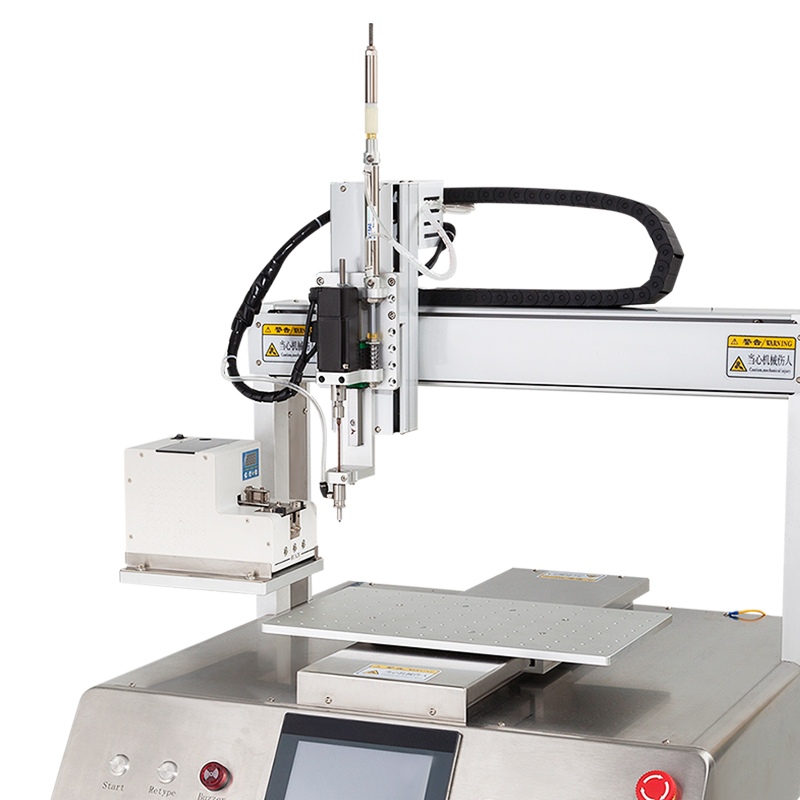

WT-4245-1Z Magnetic Suction Type Screw Fastening Robot
4 ( P/N: W00660 )

Mobel:  WT-4245-1Z
● MOQ :  1set
● Packing details:  1 set / carton
● Payment Terms:  T/T in advance, Paypal, Western Union


  • Product Details
  • Reviews

WT-4245-1Z  (Magnetic Suction type)

Screw Fastening Robot

Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.

Operating Range (X * Y * Z)


Movement Speed

X/Y Axis: ≤500mm/s,  Z Axis: ≤300mm/s.

Repeatability  Accuracy


Screwing time for each screw

1.0~1.5s /piece

Suitable screw size

M1.5 – M4 (total screw length ≤ 16mm)

Control system

SCM + Touch Screen

Program capacity

15 files, each file can save up to 99 points

Air source

0.4 -0.6 Mpa

Dimensions (WxDxH)

810 x 720 x 900mm

about 80 kgs

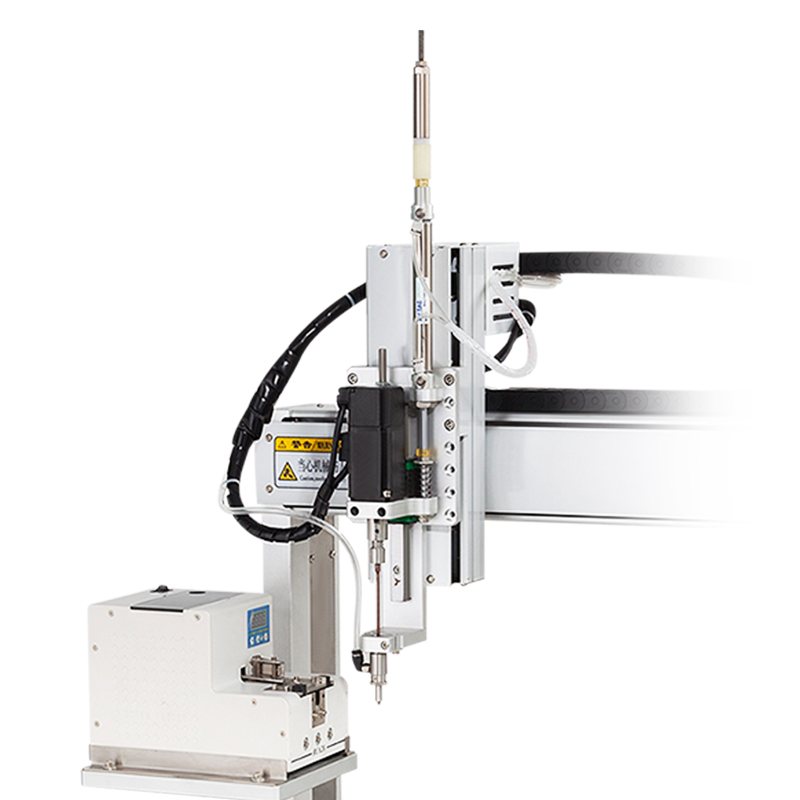

1. Permanent magnet suction screw structure, deep hole / bevel screw / meson screw locking function for product locking screw position

2. Support anti-leak lock / sliding / floating tooth alarm function

3. Support pre-release or pre-release adjustments

4. Support automatic induction start operation function

5. Support servo electric batch speed and torque automatic adjustment function

6. Support manual drag adjustment, lock screw point adjustment function


It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.

Basic Configuration:
