WT-5021-2Z Back-to-back (Vacuum Suction)
4 ( P/N: W00658 )

Mobel:  WT-5021-2Z
● MOQ :  1set
● Packing details:  1 set / carton
● Payment Terms:  T/T in advance, Paypal, Western Union

Qty:

  • Product Details
  • Reviews

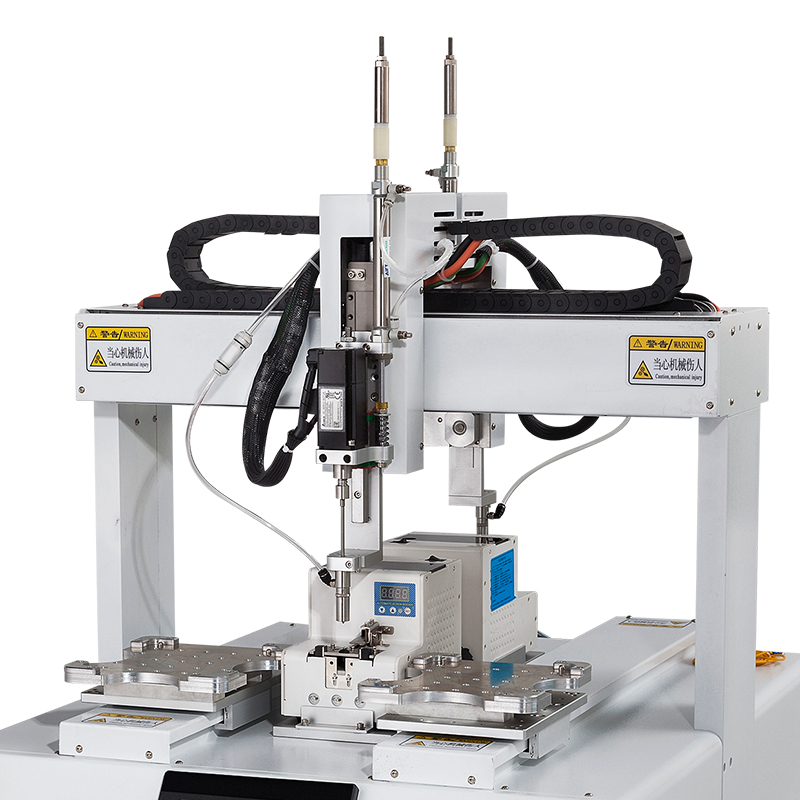

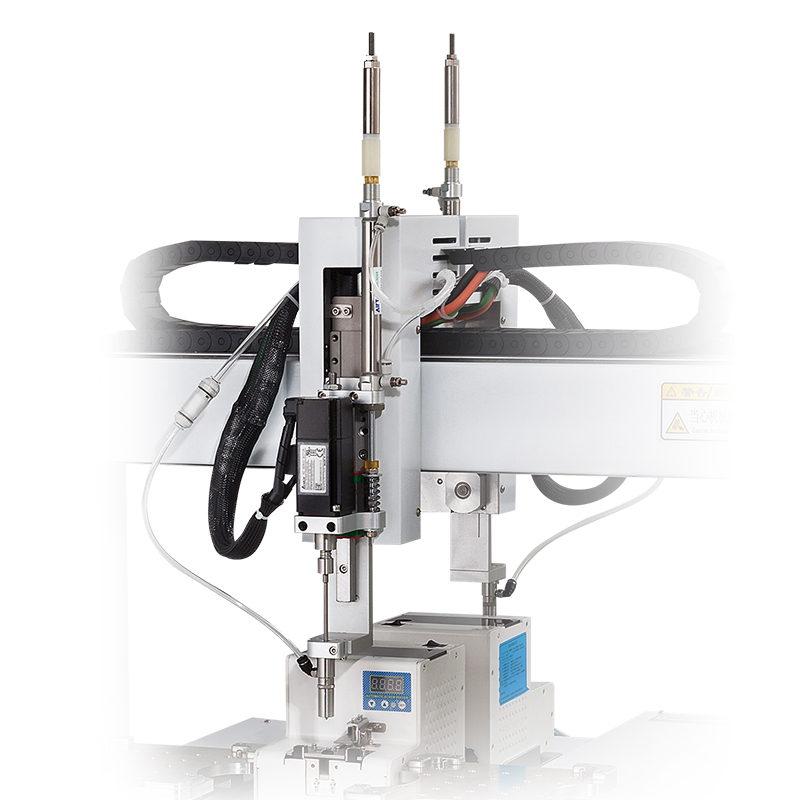

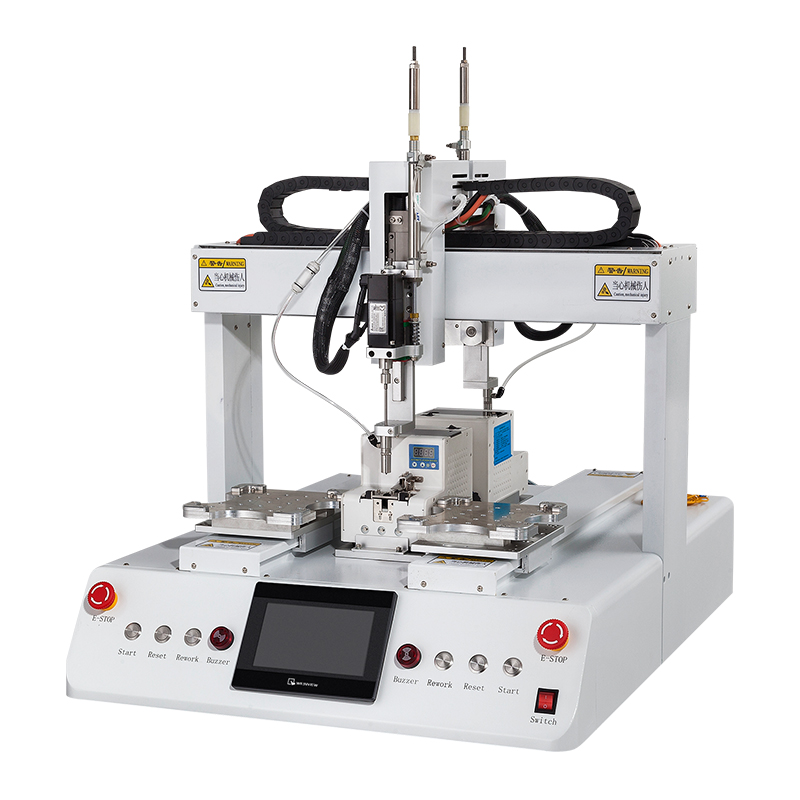

WT-5021-2Z BACK-TO-BACK (Vacuum Suction )

Screw Fastening Robot


Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.


Specifications:
Model
WT-5021-2Z
Operating Range (X * Y * Z)

X210 * Y1/500  * Z130mm  /  X210 * Y2/500  * Z130mm

Movement Speed

X/Y Axis: ≤500mm/s,  Z Axis: ≤300mm/s

Repeatability  Accuracy

 ±0.03mm

Screwing time for each screw

1.0~1.5s /piece

Suitable screw size

M1.5 – M4 (total screw length ≤ 16mm)

Control system

SCM + Touch Screen

Program capacity

15 files, each file can save up to 99 points

Air source

0.4 -0.6 Mpa

Dimensions (WxDxH)

950 x 720 x 900mm

Weight
about 100 kgs



























Features:

1. Back-to-Back type cantighten two different screws on the same product on the same Y axis, so as to achieve extremely fast and efficient work mode.

2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.

3. Support auto sensing start operation function.

4. Servo Motor or Electric Screwdriver are optional. Both of them can adjust the torque and rotation speed freely.


Applications:

It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.


Basic Configuration:
