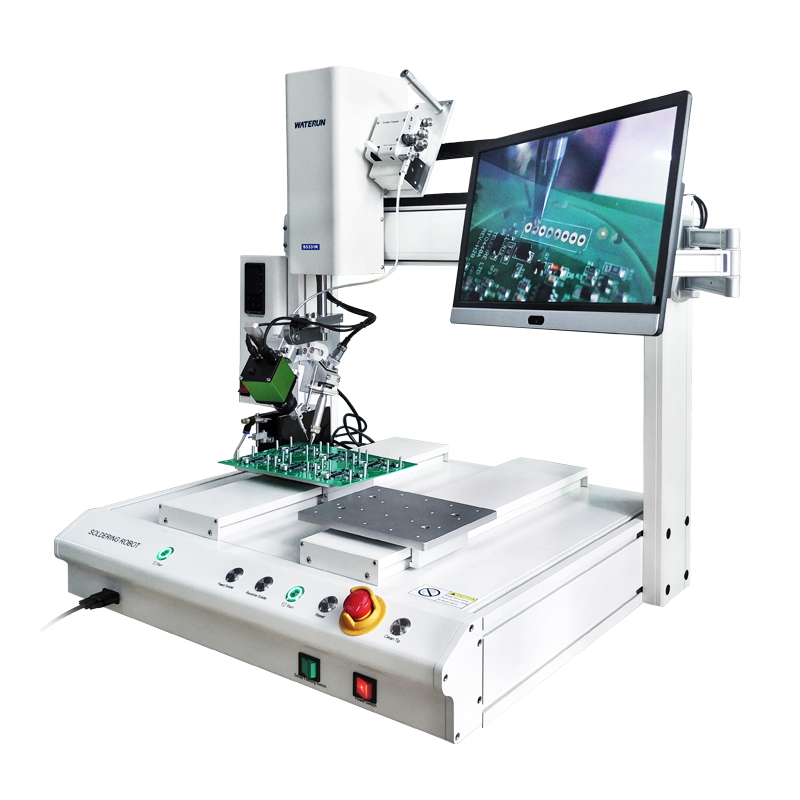

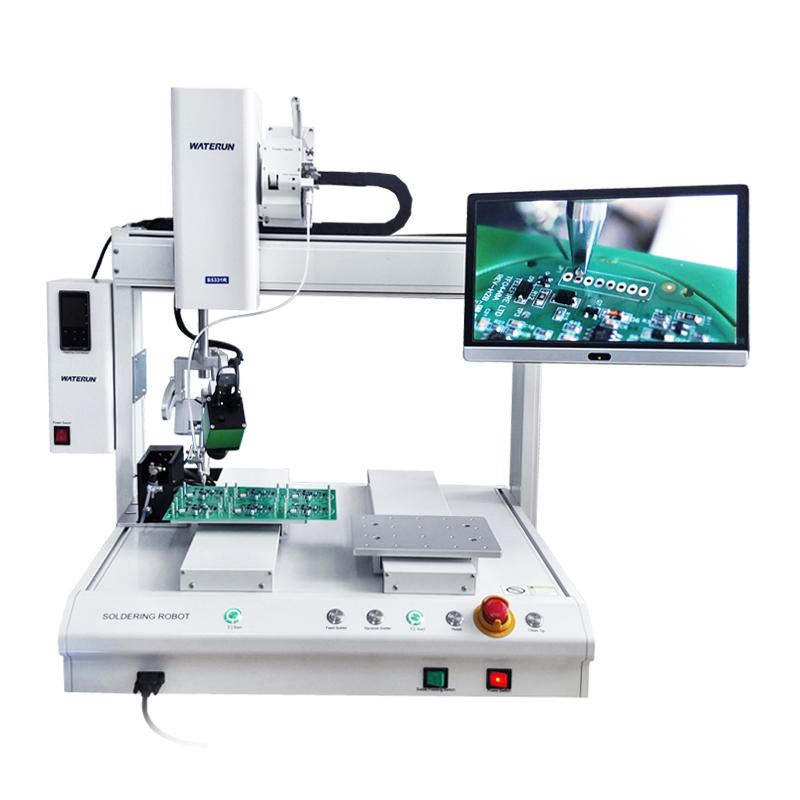

S5331R Soldering Robot (with display)
4 ( P/N: W00654 )

Mobel:  S5331R
● MOQ :  1 set
● Packing details:  1 set / carton
● Payment Terms:  T/T in advance, Paypal, Western Union

Qty:

  • Product Details
  • Reviews

Starobot Soldering Robot:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.


Specifications:
Model
S5331R
Solder Joint Range
X500* Y1/300*Y2/300*Z100mm(XxYxYxZ)
Solder Time
1.0~1.5s/point
Repeat Positioning Accuracy
±0.002mm
Solder Wire Diameter
0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Air source
0.4-0.6 MPA
Axis
          5
Program Capacity
999 files, each file can save up to 999 points
External Dimensions(WxDxH)
820mm x 600mm x 800mm
Weight
about 65kgs

























Features:

1. Applicable for different products, soldering temperature can be set  freely.

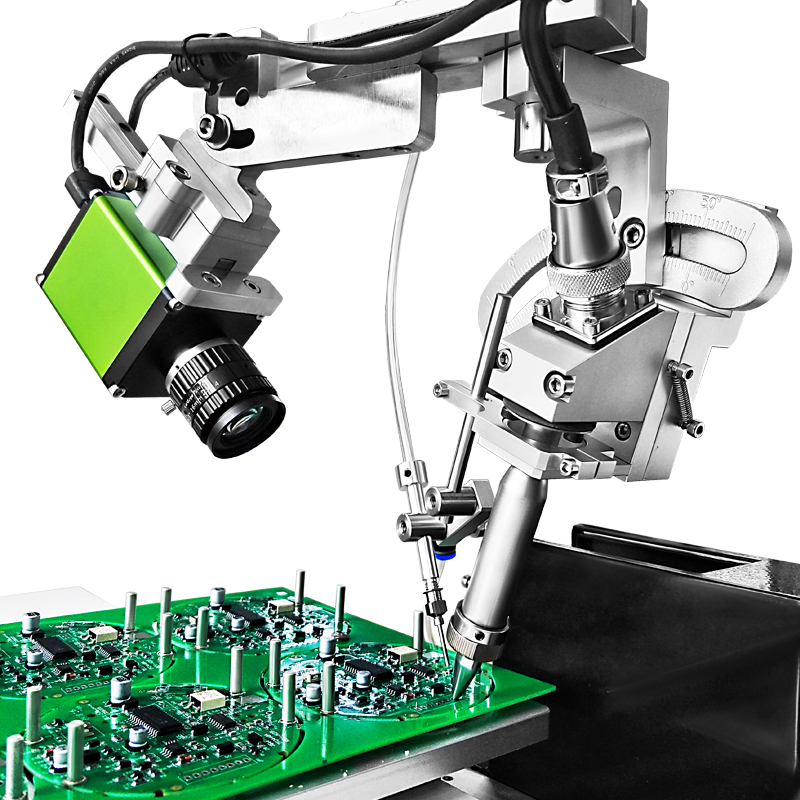

2. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.

3.  Numerically controlled temperature (static air condition: ±1)

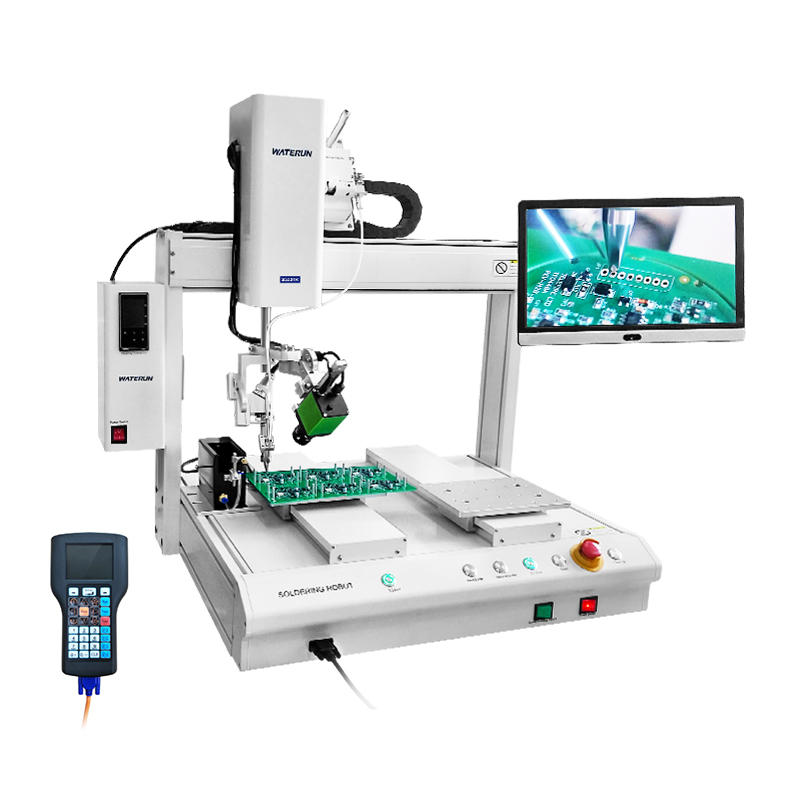

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.

5. In the soldering process, the solder tip has rapid heat recovery and a long life span.



Basic Configuration:
