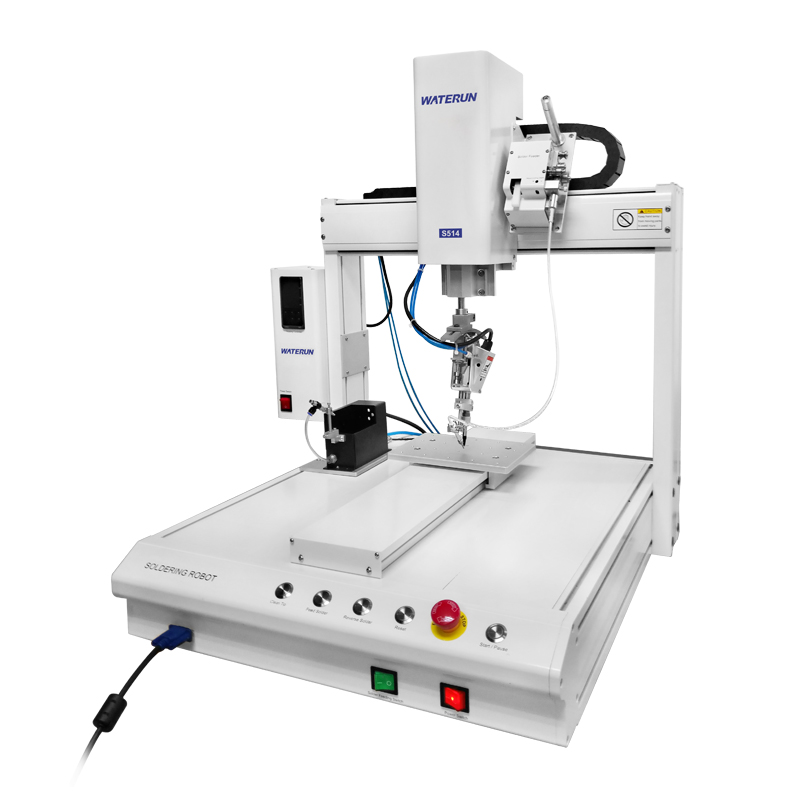

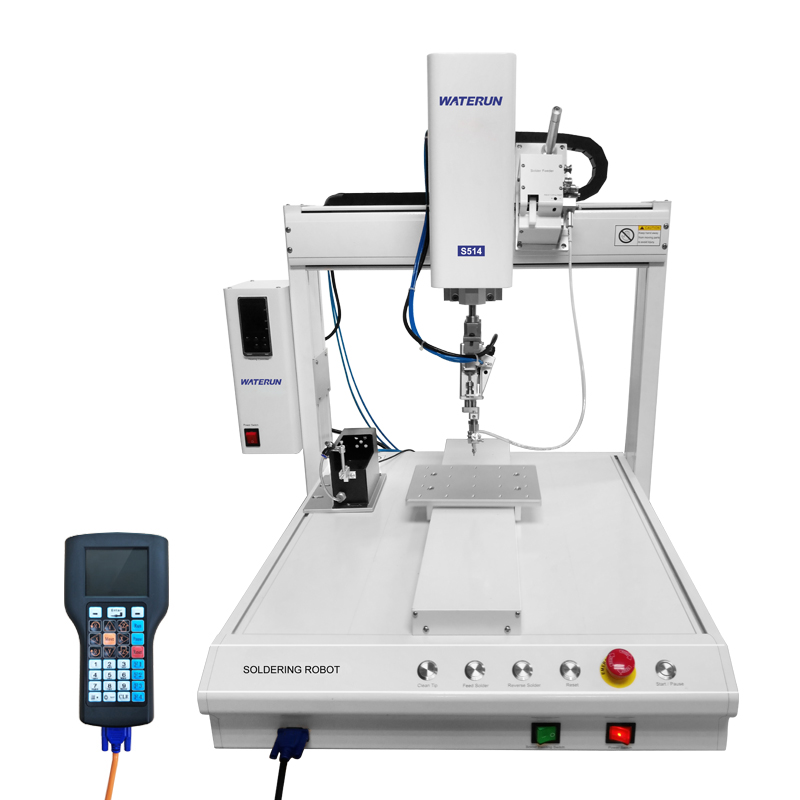

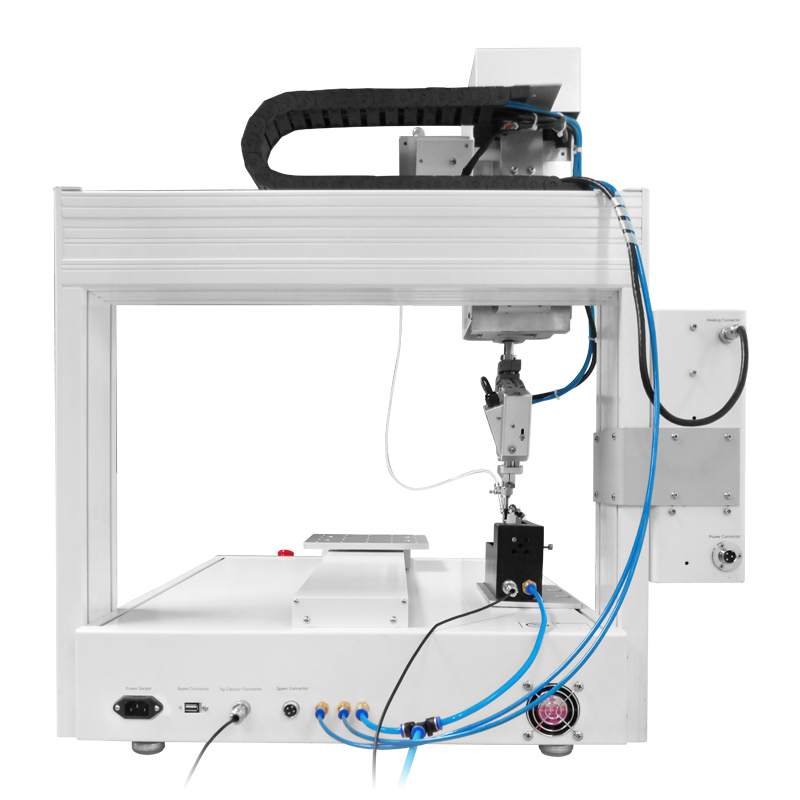

S514 Soldering Robot
4 ( P/N: W00651 )

Mobel:  S514
● MOQ :  1 set
● Packing details:  1 set / carton
● Payment Terms:  T/T in advance, Paypal, Western Union

Qty:

  • Product Details
  • Reviews

Starobot Soldering Robot:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.


Specifications:

Model
S514
Voltage
110V / 220V
Heating Power
100W
Preheating Temperature Range
0℃~500℃
Axis
4
Operating Range (X * Y * Z)
400 x 400 x 100mm
Movement Speed
X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy
±0.002mm
Resolution
0.01mm
Maximum Load Weight
8kg (for work platform)
Solder Wire Diameter
0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Demo File Capacity
≤999files, max 1994 points for each file
Program Capacity
max 255 programs
Operate Temperature
0℃~40℃
Operate Humidity
20~90%
External Dimensions
720mm x 700mm x 810mm
Weight
about 66kgs


































Features:

1. Applicable for different products, soldering temperature can be set  freely.

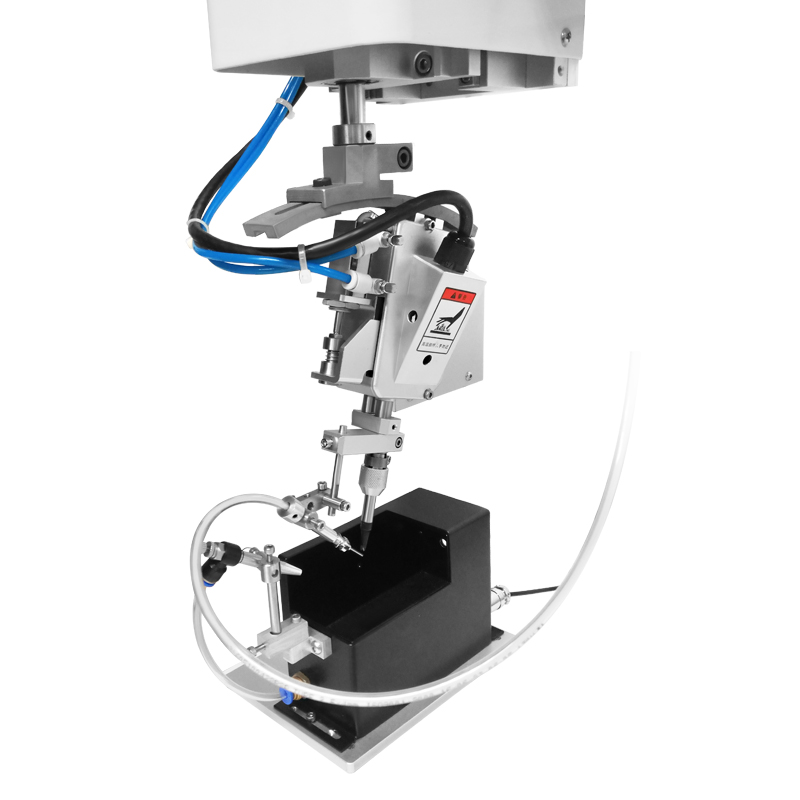

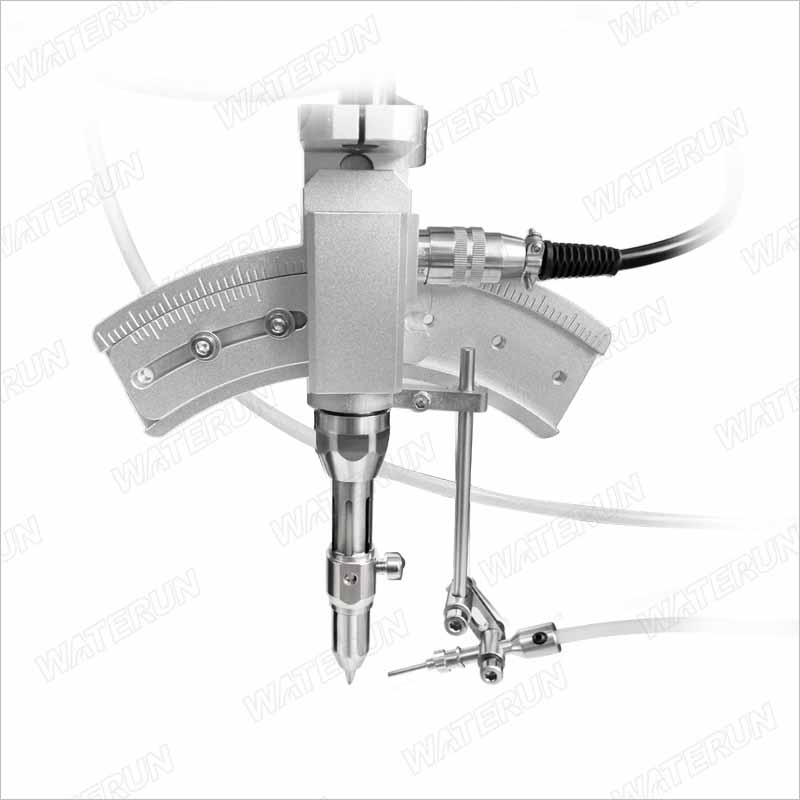

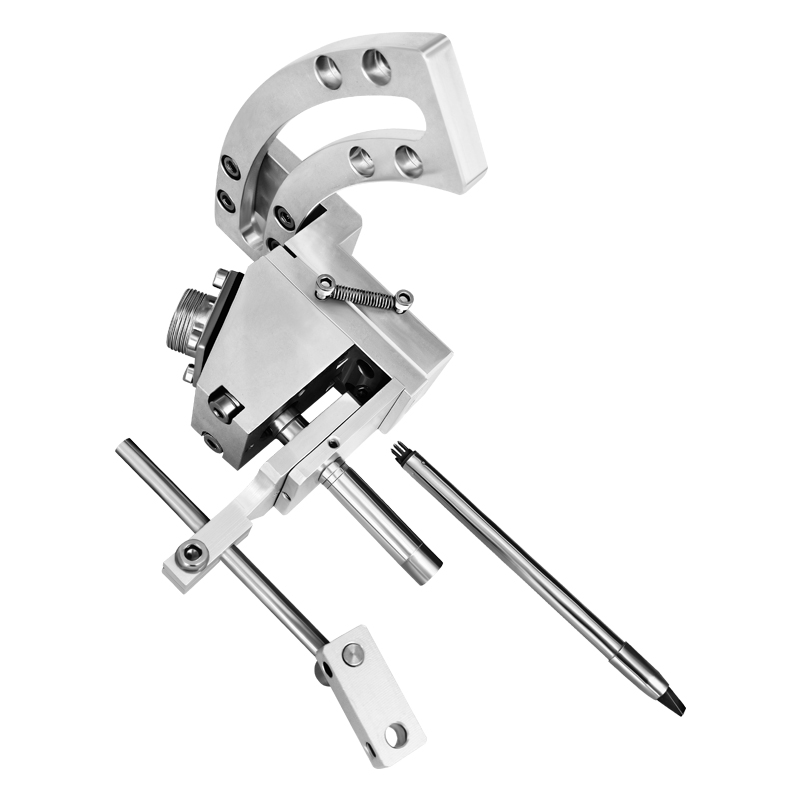

2. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.

3.  Numerically controlled temperature (static air condition: ±1)

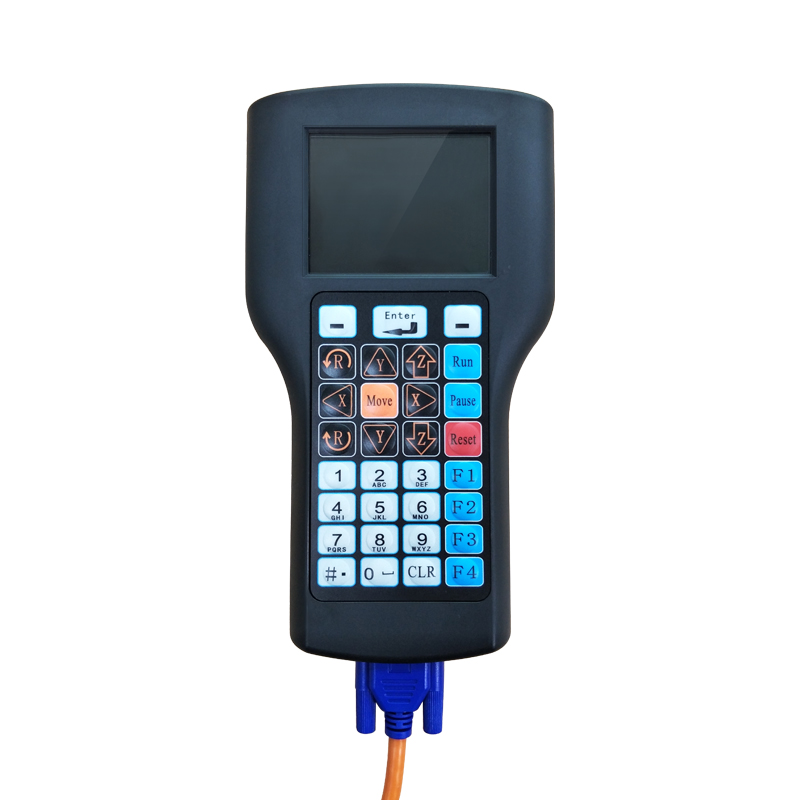

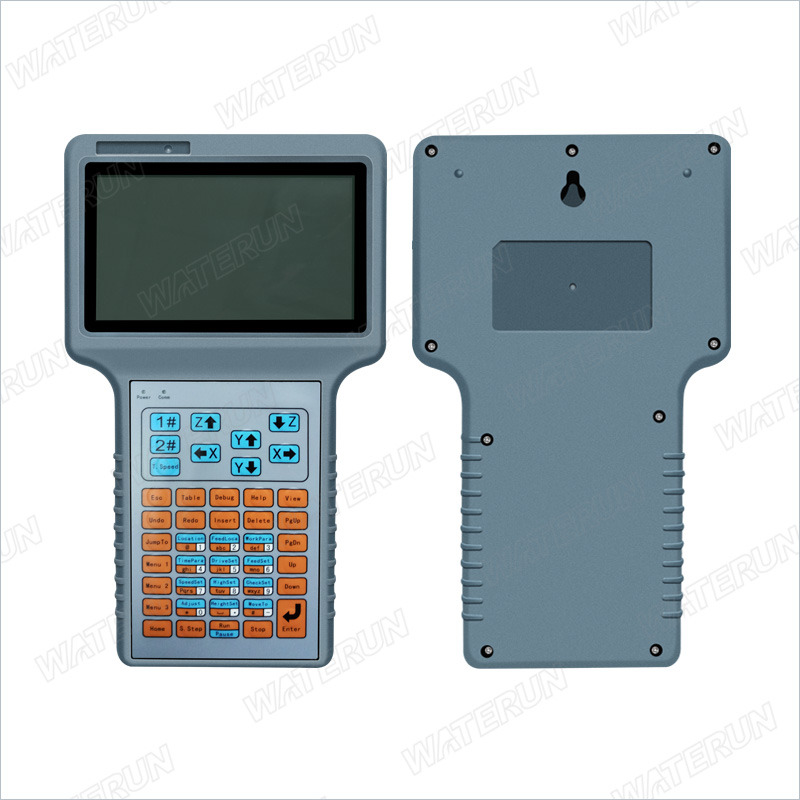

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.

5. In the soldering process, the solder tip has rapid heat recovery and a long life span.

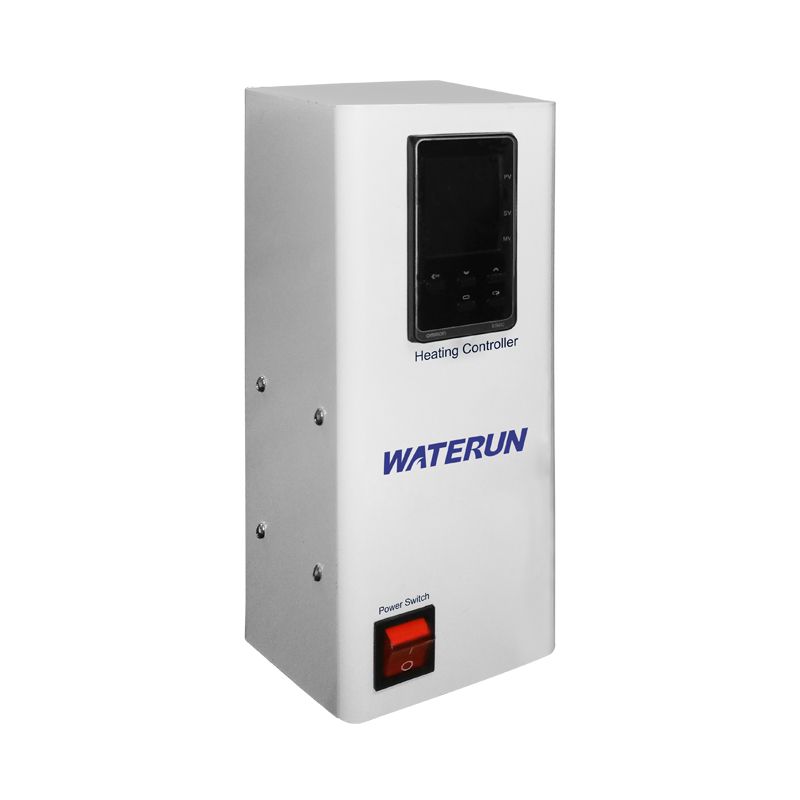

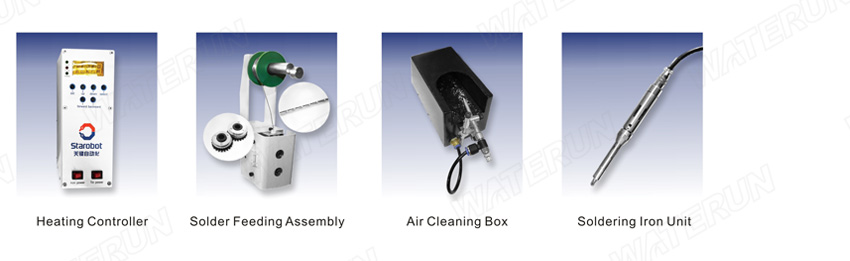

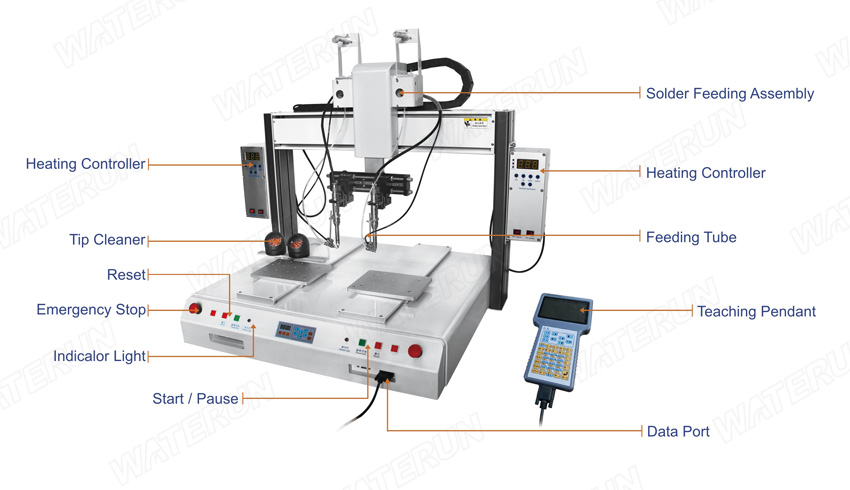

Basic Configuration:
